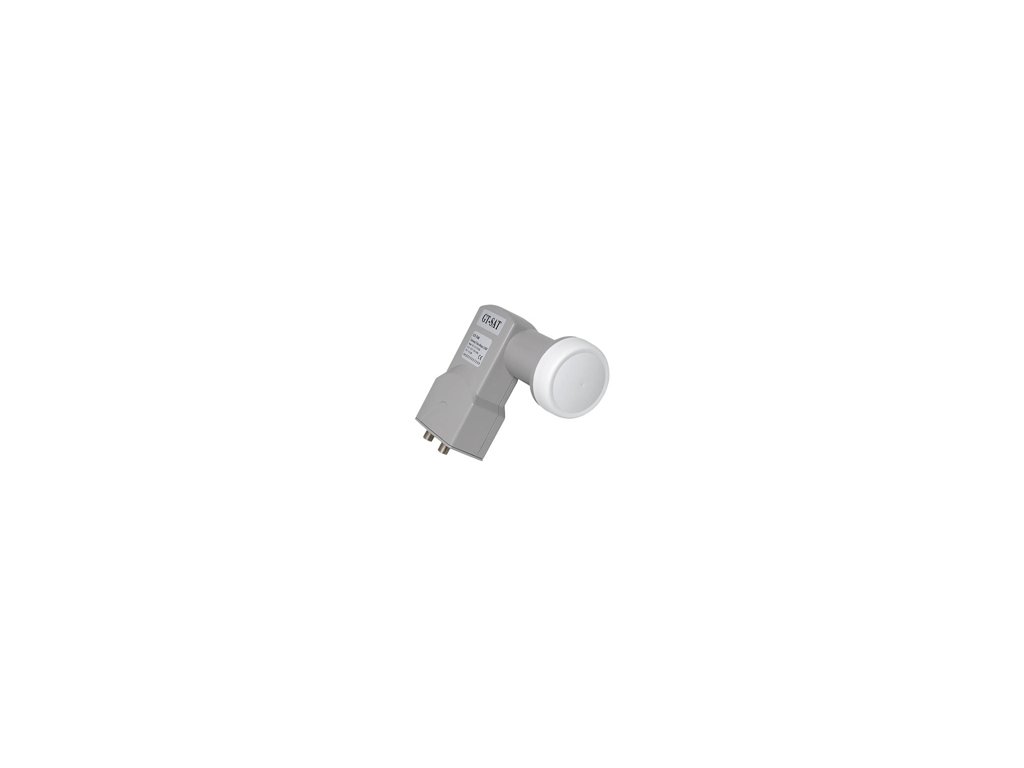

LNB GT-TCIR40 circular

LNB twin pre kruhovú polarizáciu, 0,2 dB, krytka na F

Technické parametre:

Input Frequency Range
High Band :
11.7 ~ 12.75 GHz

Output Frequency Range
750 ~ 2000 MHz

L.O. Frequency
10.75 GHz

L.O. Frequency Stability
+/-1 MHz (Max)@ Room Temp.

Local Oscillator Frequency Phase Noise
-60dBc/Hz @ 1KHz (Max.)
-85dBc/Hz @ 10KHz (Max.)
-105dBc/Hz @ 100KHz (Max.)

Noise Figure
0.3dB (Typ.)

Conversion Gain
56 ~ 60 dB

Gain Flatness 26MHz Bandwidth
+/-0.5dB (Typ.)

Operating Voltage
RHCP
11.0 ~ 14.0 Vdc
LHCP
16.0 ~ 20.0 Vdc

Cross-Pol. Isolation
25 dB (Typ.)

Image Rejection
40 dB (Min.)

Current Consumption
90 mA (Typ.)

Output Connector Type
75 OHMS F-Female

Output Spurious
<-60dBm

Operating Temperature Range
-40°C ~ +65°C

Storage Temperature Range
-45°C ~ +70°C
